Light switches
BG Nexus Metal Brushed Steel light switches in 1, 2, 3 gang (NBS12, NBS13, NBS42, NBS43). Every plate switch is 2 way, so it works alone or in a pair, and rated 20 A 16AX to switch LED and low energy lighting without derating.
1 Gang 2 Way Light Switch
Single rocker plate switch, 2 way wiring, 20A 16AX rated so it drives LED lighting without derating.
1 Gang Intermediate Light Switch
Intermediate plate switch for lights controlled from three or more positions, 20A 16AX rated for LED loads.
2 Gang 2 Way Light Switch
Double rocker plate switch, 2 way wiring, 20A 16AX rated so it drives LED lighting without derating.

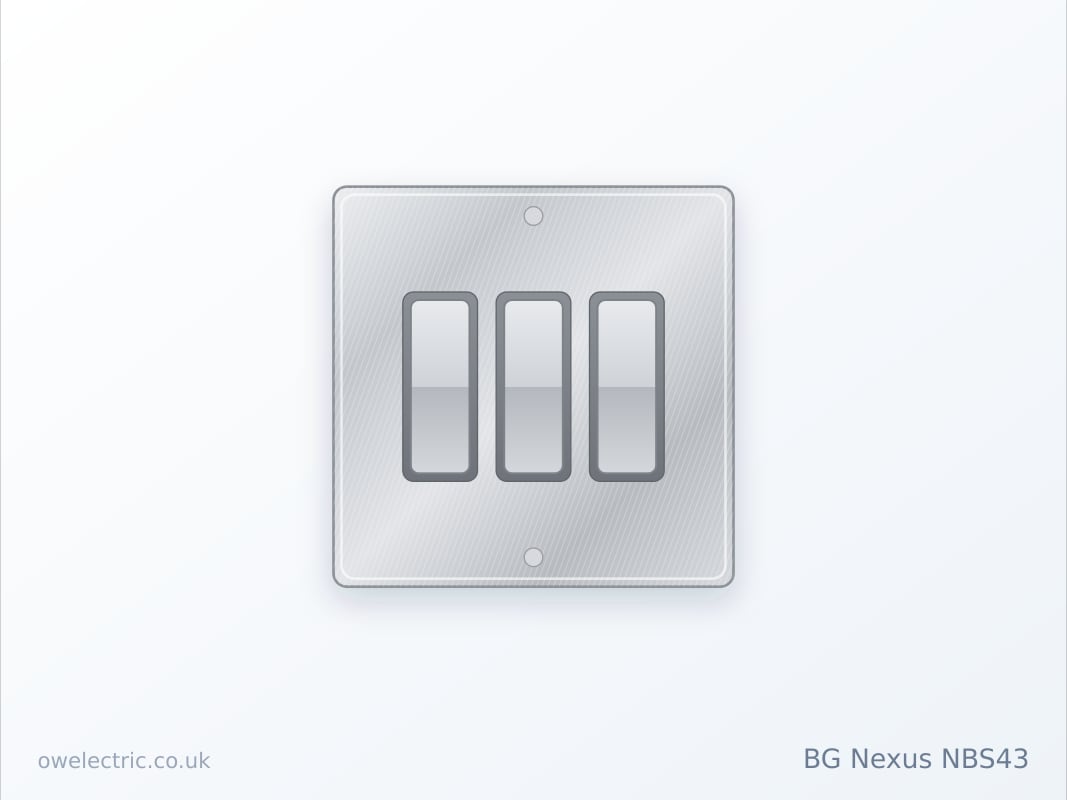

3 Gang 2 Way Light Switch
Triple rocker plate switch, 2 way wiring, 20A 16AX rated so it drives LED lighting without derating.
13A sockets
BG Nexus Metal Brushed Steel 13 A sockets (NBS21G, NBS22G) with twin earth terminals and outboard rockers so plugs never foul the switch. Double pole versions isolate live and neutral. Fit a 25 mm back box.
1 Gang 13A Double Pole Switched Socket
Single 13 A switched socket outlet with double pole switching that isolates live and neutral, screw terminals that accept 3 x 2.5 mm² cable.
2 Gang 13A Double Pole Switched Socket
Double 13 A switched socket outlet with double pole switching that isolates live and neutral, screw terminals that accept 3 x 2.5 mm² cable.
Sockets with USB
BG Nexus Metal Brushed Steel double sockets with built in USB charging (NBS22U3G) for phones, tablets and earbuds without a plug adaptor. They need a 35 mm back box because the charger sits behind the plate.
2 Gang 13A Switched Socket with 2 x USB-A 3.1A
Double 13 A switched socket with built in USB charging (2 x USB-A 3.1A) so phones and tablets charge without a plug adaptor.
Fused spurs
BG Nexus Metal Brushed Steel 13 A switched fused connection units (NBS50) for boilers, extractor fans, heated towel rails, cooker hoods and under cabinet lighting. Fit a 3 A, 5 A or 13 A fuse to suit the appliance.
13A Switched Fused Spur
Switched fused connection unit for boilers, extractor fans, towel rails and kitchen appliances.
20A double pole switches
BG Nexus Metal Brushed Steel 20 A double pole switches (NBS31) to isolate immersion heaters, water heaters and other fixed appliances up to 20 A.
20A Double Pole Switch
20 A double pole isolator switch for immersion heaters, water heaters and fixed appliances.
Cooker switches
BG Nexus Metal Brushed Steel 45 A double pole cooker switches (NBS74) for ovens and hobs on 6 mm² or 10 mm² cable, fitted within 2 m of the appliance but not directly above the hob.
45A Cooker Switch
45 A double pole switch on a single plate for ovens, hobs and cooker circuits, with a neon to show the supply is live.
Cooker control units
BG Nexus Metal Brushed Steel 45 A cooker control units (NBS70G) that add a switched 13 A socket next to the cooker switch, on a double gang plate.
45A Cooker Control Unit with Socket
Double plate cooker control unit: 45 A double pole cooker switch plus a switched 13 A socket, both with neon indicators.
Dimmers
BG Nexus Metal Brushed Steel intelligent trailing edge dimmers (NBS81P) for dimmable LED lamps, 5 to 100 W LED or up to 400 W halogen. Push to switch, turn to dim, and pair with a standard 2 way switch.
1 Gang 2 Way 400W LED Dimmer
Intelligent trailing edge push on/off dimmer for dimmable LED lamps (5 to 100 W) or up to 400 W of halogen, 2 way compatible.
Blank plates
BG Nexus Metal Brushed Steel blank plates (NBS94) to close a redundant back box neatly in the matching finish.

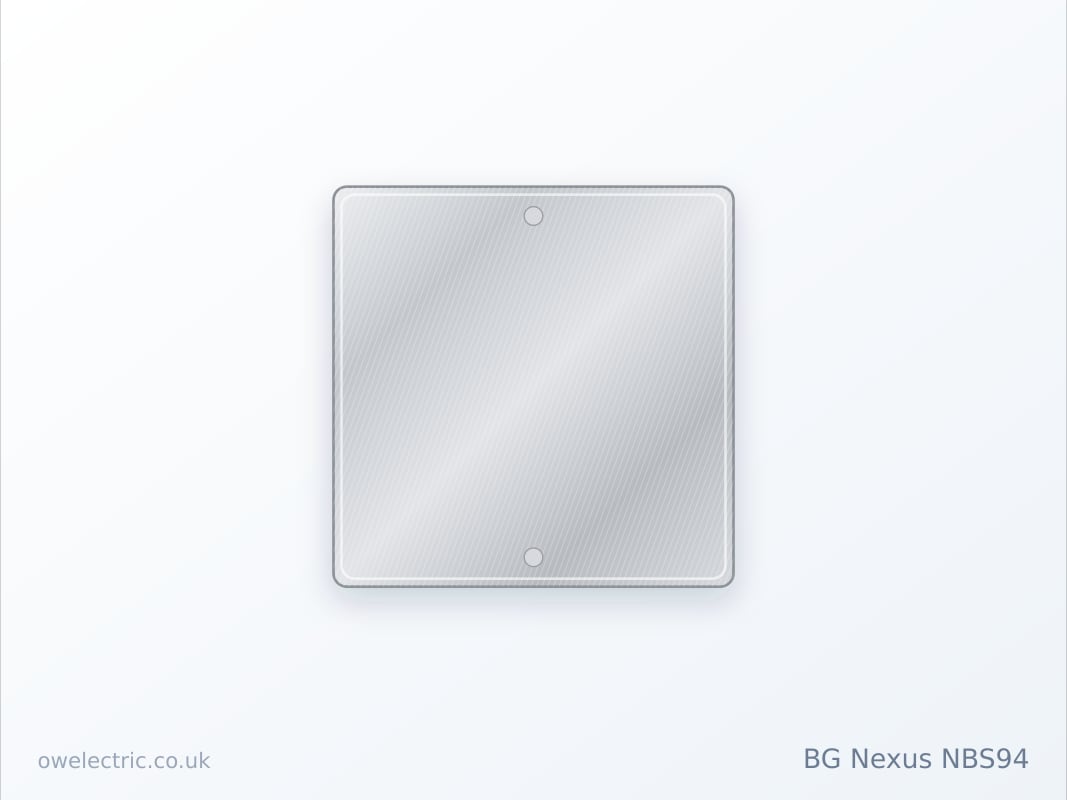

1 Gang Blank Plate
Blanking plate to close a redundant back box neatly in the matching finish.
Other finishes
Also available in Nexus White Moulded and Nexus Screwless Flatplate. Not sure about gangs, ways or back box depths? Read the sockets and switches guide.
